Air Plasma Cutting Machine

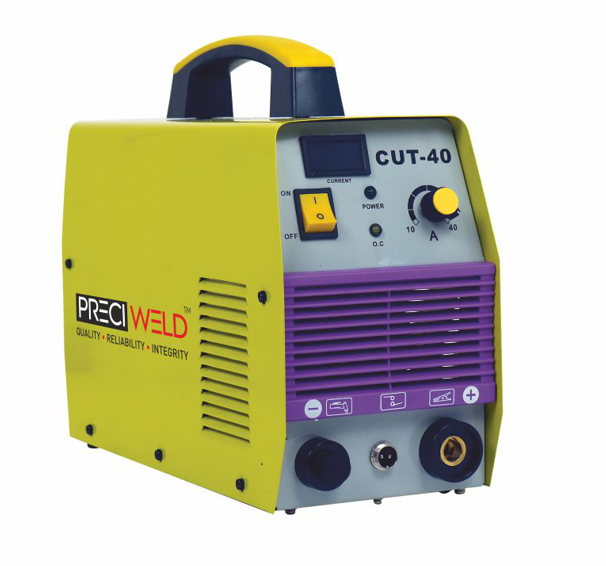

CUT 40 Specifications
| PARAMETER | CUT 40 |
| Input Voltage (V) | AC230V ±15% |
| Input Power Capacity (KVA) | 6.5 |
| No-Load Voltage (V) | 253 |
| Output Current Range (A) | 15-40 |
| Rate Input Current (A) | 30 |
| Power Factor | 0.73 |
| Duty Cycle (%) | 60 |
| Insulation Grade | F |
| Air Pressure (KG) | 4.5 |
| Arc Ignition | Contact |
| Net Weight (KG) | 9 |
| Dimension (Inch) | 15.5 x 6 x 12 |
| Cutting Thickness (MM) | 0.3 - 6.0 |
- Latest Inverter Welding Technology
- Over Load & Over Heat Auto Cutoff Protection
- Adopting Contact & Non Contact Cutting
- Stable Cutting Current & Smooth in Cutting
- Light Weight & Portable
- High Efficiency & High Frequency
- Adopting Pulse With Technique
- Low Maintenance
- Power Saving of upto 50% to 55%
- Heavy Duty & Long Life
- High Welding Quality

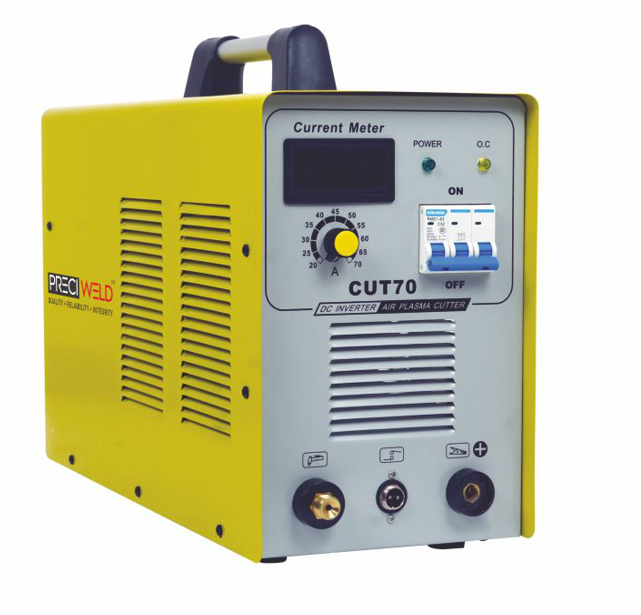

CUT 70 Specifications
| PARAMETER | CUT 70 |
| Input Voltage (V) | AC415V ±15% |
| Input Power Capacity (KVA) | 7.8 |
| No-Load Voltage (V) | 240 |
| Output Current Range (A) | 20-70 |
| Rate Input Current (A) | 12 |
| Power Factor | 0.93 |
| Duty Cycle (%) | 60 |
| Insulation Grade | F |
| Air Pressure (KG) | 4.5 |
| Arc Ignition | Contact |
| Net Weight (KG) | 19 |
| Dimension (Inch) | 20 X 8 X 15 |
| Cutting Thickness (MM) | 0.3 - 12.0 |
- Latest Inverter Welding Technology
- Over Load & Over Heat Auto Cutoff Protection
- Adopting Contact & Non Contact Cutting
- Stable Cutting Current & Smooth in Cutting
- Light Weight & Portable
- High Efficiency & High Frequency
- Adopting Pulse With Technique
- Low Maintenance
- Power Saving of upto 50% to 55%
- Heavy Duty & Long Life
- High Welding Quality

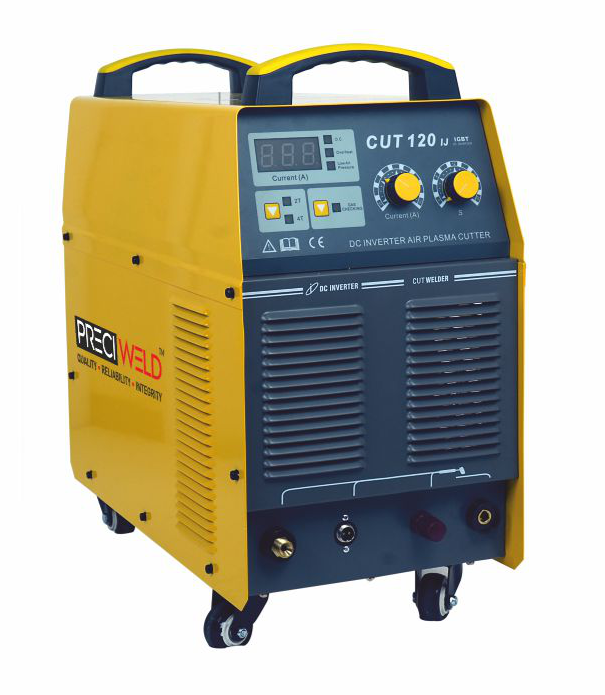

CUT 120 IJ Specifications
| PARAMETER | CUT 120 IJ |
| Input Power Voltage (V) | AC415V ±15% |
| Input Power Capacity (KVA) | 15.1 |
| No-Load Voltage (V) | 290 |
| Output Current Range (A) | 20-120 |
| Rate Input Current (A) | 23.1 |
| Power Factor | 0.93 |
| Duty Cycle (%) | 60 |
| Insulation Grade | F |
| Air Pressure (KG) | 4.5 |
| Arc Ignition | Pilot Arc |
| Net Weight (KG) | 36.5 |
| Dimension (Inch) | 21.5 X 11 X 21.5 |
| Cutting Thickness (MM) | 1.0 - 30.0 |
- Latest Module IGBT & Module DIODE Inverter Welding Technology
- Over Load & Over Heat Auto Cutoff Protection
- Adopting Contact & Non Contact Cutting
- Stable Cutting Current & Smooth in Cutting
- Light Weight & Portable
- High Efficiency & High Frequency
- Adopting Pulse With Technique
- Low Maintenance
- Power Saving of upto 50% to 55%
- Heavy Duty & Long Life
- High Welding Quality

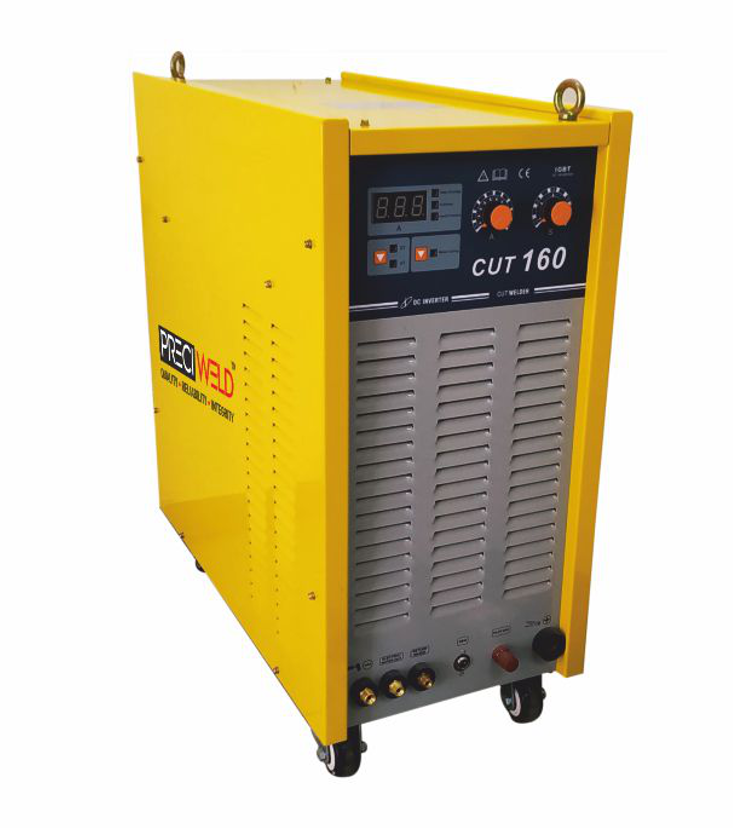

CUT 160 IJ Specifications
| PARAMETER | CUT 160 IJ |
| Input Voltage (V) | AC415V ±15% |
| Input Power Capacity (KVA) | 29 |
| No-Load Voltage (V) | 320 |
| Output Current Range (A) | 40-160 |
| Rate Input Current (A) | 44.3 |
| Power Factor | 0.93 |
| Duty Cycle (%) | 60 |
| Insulation Grade | F |
| Air Pressure (KG) | 4.6 |
| Arc Ignition | Pilot Arc |
| Net Weight (KG) | 60 |
| Dimension (Inch) | 26.5 X 13 X 20 |
| Cutting Thickness (MM) | 1.0 - 45.0 |
- Latest Module IGBT & Module DIODE Inverter Welding Technology
- Over Load & Over Heat Auto Cutoff Protection
- Adopting Contact & Non Contact Cutting
- Stable Cutting Current & Smooth in Cutting
- Light Weight & Portable
- High Efficiency & High Frequency
- Adopting Pulse With Technique
- Low Maintenance
- Power Saving of upto 50% to 55%
- Heavy Duty & Long Life
- High Welding Quality

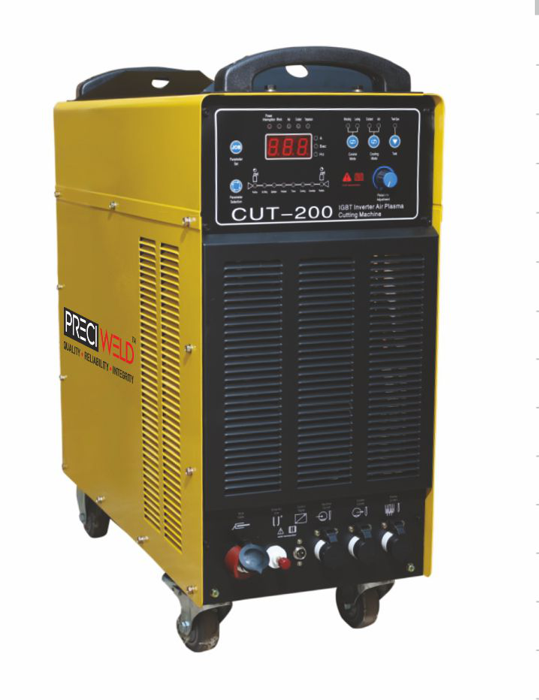

LGK/CUT 200 Specifications
| PARAMETER | LGK/CUT 200 |
| Voltage (V) | 3P 380V ±15% |
| Frequency (HZ) | 50/60 |
| Rated Input Capacitor (KVA) | 47 |
| Rated Input Current (A) | 63 |
| Power Factor | 0.89 |
| Rated Output Current (A) | 200 |
| Rated Output Voltage (V) | 150 |
| Rated Duty Cycle (%) | 100 |
| Output Current Range (A) | 40-200 |
| Plasma Gas Usage | Compressed Air |
| Working Gas Pressure | 0.45-0.55 |
| Weight (KG) | 75 |
| Plate Thickness (MM) | 3.0 - 60.0 |
- The Machine Adopts High Speed High Performance CPU Control System.
- 100% Arc Striking Success Rate Stable and Stiff Arc, Smooth Incision.
- Excellent Power Source Control System with High Response Speed.
- Wide Grid Voltage Adaptability And High Reliability with Stable Plasma Arc Combustion.

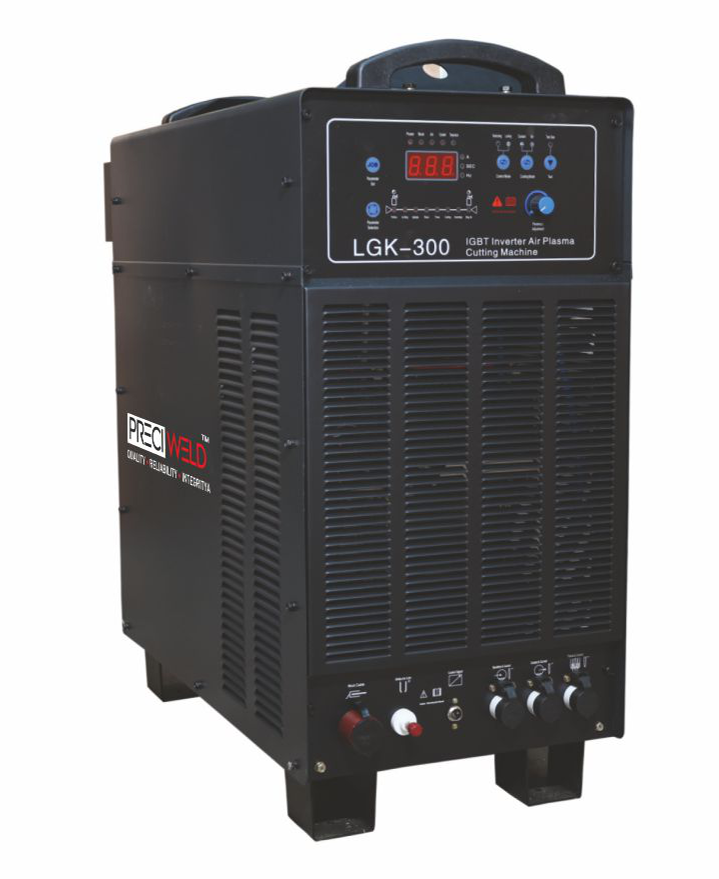

LGK/CUT 300 Specifications
| PARAMETER | LGK/CUT 300 |
| Voltage (V) | 3P 415V ±15% 50/60 |
| Rated Input Capacity (KVA) | 77 |
| Rated Input Current (A) | 94 |
| Efficiency (%) | 92 |
| Rated Output Current (A) | 300 |
| Rated Output Voltage (V) | 160 |
| Output Current Range (A) | 40-300 |
| Plasma Gas Usage | Compressed Air |
| Weight (KG) | 135 |
| Dimension (mm) | 850 x 410 x 930 |
| Plate Thickness (MM) | 3.0 - 70.0 |
- High Speed High Performance CPU Control System.
- Advanced Soft Switch High Frequency Inverter Technology.
- 100% Arc Striking Success Rate.
- Suitable for Automatic Cutting and CNC Control.

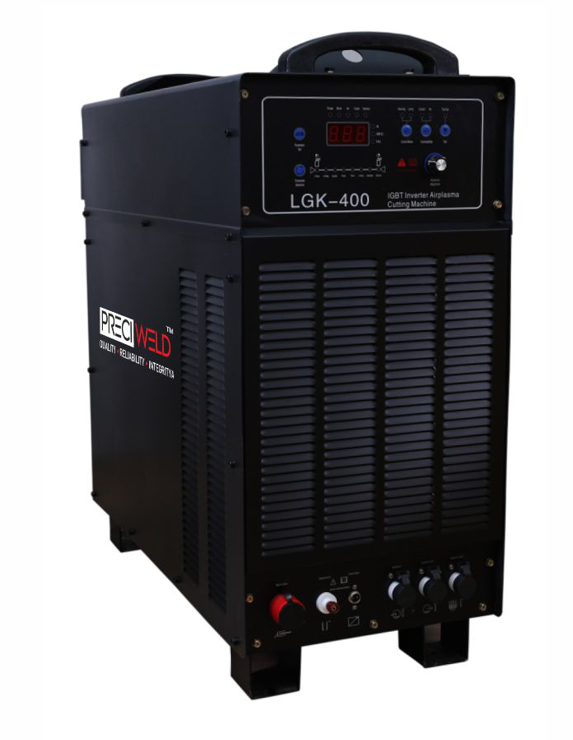

LGK/CUT 400 Specifications
| PARAMETER | LGK/CUT 400 |
| Voltage (V) | 3P 415V ±15% 50/60 |
| Rated Input Capacity (KVA) | 102 |
| Rated Input Current (A) | 137 |
| Efficiency (%) | 92 |
| Rated Output Current (A) | 400 |
| Rated Output Voltage (V) | 170 |
| Output Current Range (A) | 40-400 |
| Plasma Gas Usage | Compressed Air |
| Weight (KG) | 153 |
| Dimension (MM) | 980 x 430 x 930 |
| Plate Thickness (MM) | 3.0 - 80.0 |
- High Speed High Performance CPU Control System.
- Digital Parameters with Preset Cutting Parameters.
- Advanced Soft Switch High Frequency Inverter Technology.
- 100% Arc Striking Success Rate, Smooth Incision.
- Heavy Duty Cycle for Long Hours Operation.
