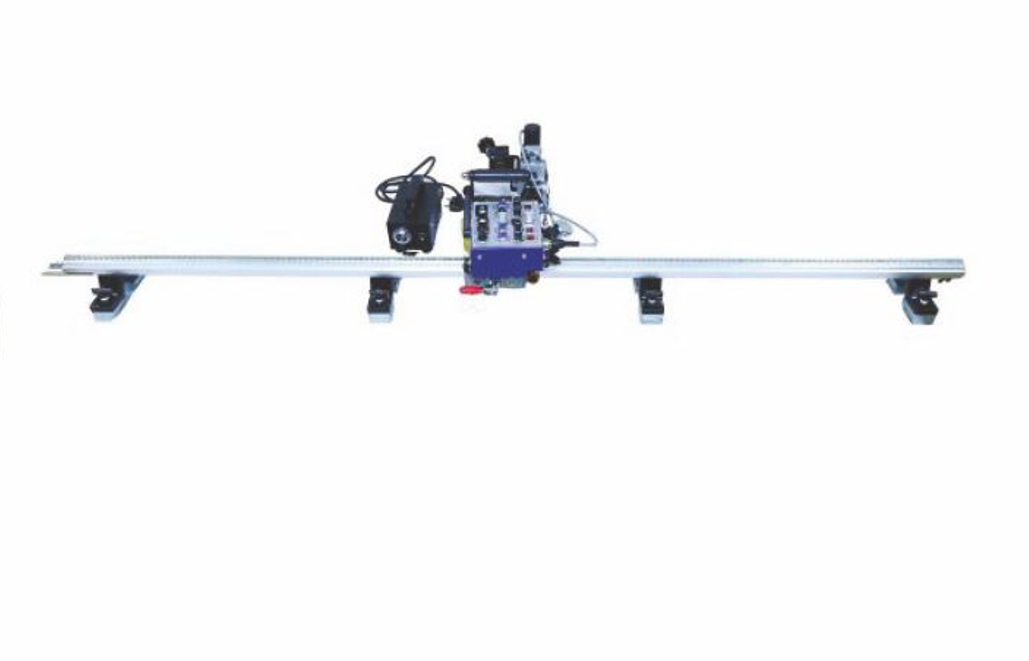

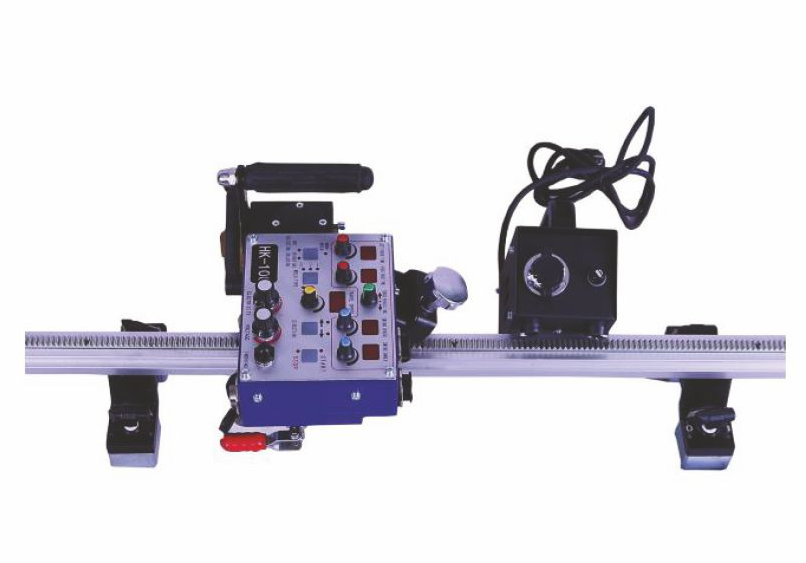

HK 100 Wavering Auto Welding Carriage
HK 100 Specifications
| PARAMETER | HK 100 |
| Supply Voltage | AC220/50 |
| Dimensions (MM) | 480 X 260 X 100 |
| Range For Adjusting Torch Up Down | 60 MM |
| Range For Adjusting Torch Forward Backward | 150 MM |
| Work Angle | 0 - 45° |
| Processing Angle | ±10° |
| Wavering Control Left / Right Pause Time | 0 - 2.5S |
| Oscillating Motor | Brush Less Motor |
| Wavering Speed | 0-100 |
| Wavering Angle | ±15° |
| Speed (MM/Min) | 50 - 800 |
| Method of Driving | Rack and Pinion |
| Weight (KG) | 9 |
FEATURES
- Used For Auto Welding Of Jointing, Vertical And Horizontal.
- Welding Torch Has Weaving Function. Wavering Speed, Angle, Central Shifting And Left Right Pause Time Can Be Adjusted So As To Make The Best Welding Result.
- The Driven Is Equipped With Manual Clutch For Easy Position And Returning To The Starting Position For The Welding.
- Small Rail Is Easy To Move And Equipped With Permanent Magnet, Easy To Operate.
- Widely Used In Ship Building, Bridge, Vehicle Oil And Chemical And Steel Structure Engineering.
- 1.8m Rail 1 Set Per Standard Packing.
