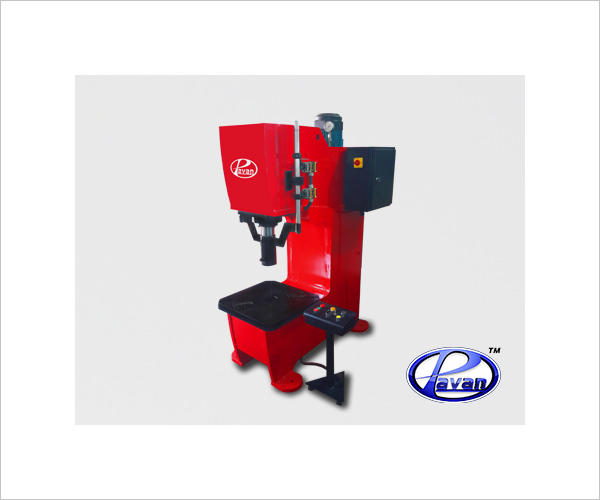

Pavan - Power Press
Description:
- 16 Inch Center Gap Ram Hole To Back
- Ram Hole 30 mm And Bed Hole 90 mm
- Motor : ABB 3 HP 3 Phase Flange
- Standard Quality Hydraulic Accessories
- Heavy Welded ‘C’ Support
- Stroke 200 mm, Cylinder Rod Dia 80 mm
- Oil Tank Capacity 55 LTR
- Heavy 45 mm T Slot Bed 520 mm x 520 mm
- Total Height 1800 mm
- Approx weight 1000 KG
- V Block & Blade Set Extra In Attachment
- Hydraulic Oil Extra
- 1 Year Warranty Only Mechanical Part.

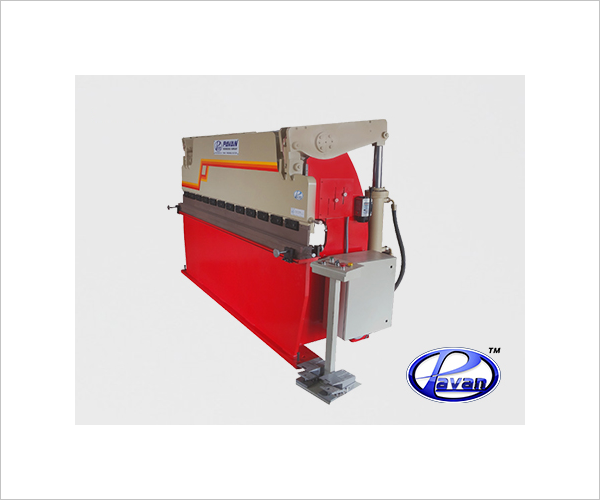

Description:
- Electrical control panel with three speed inch,single cycle, Auto mode of operation
- Manual back gauge
- Fine stroke adjustment rod with limit switches
- V block and Blade (segmented of full length, EN-8 not covered under warranty),
- Accurate bending, All pivots have hardened of Ground pin bushes of five
- Piece guide slide lubricated by central hand pump
- Clear Pass 2050 mm
- Table Length 2550 mm
- Ram Stroke 150 mm
- Throat Depth 200 mm
- Motor ABB : 5 HP Foot 3 Phase
- Approx Weight 3500 KG
- Hydraulic Oil Extra
- NC Back Gauge System INR 75,000/- Extra
